Model 121D

Specs

  • Secondary: 12.5” x 62”
  • Resonant frequency: TBD
  • Topload: TBD
  • Primary: TBD

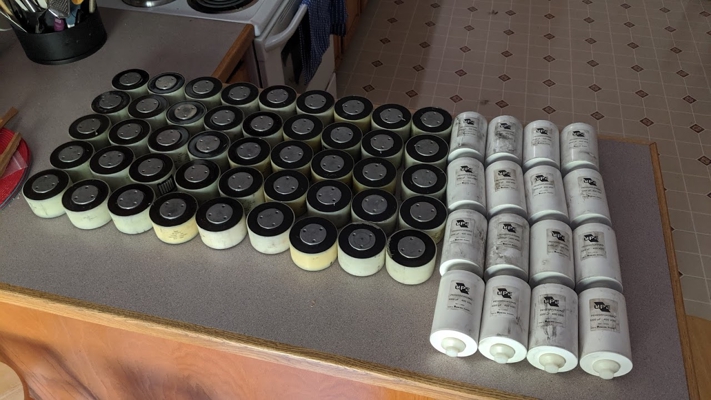

  • Primary Capacitor: 12s4p Eurofarad SP-2550-2, 1.25uF @12KVDC, 608A RMS, 10,000A peak
  • Bridge
    • Layout: H-bridge with voltage doubler for 680VDC with 240VAC input

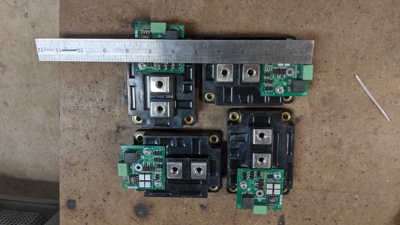

    • IGBT: 4x Mitsubishi CM600HA-24H
    • Bus capacitor: TBD
    • Bus: TBD
    • Snubber: TBD
  • Driver: UD3
  • OCD: 2500A minimum
  • Arc length: TBD

Introduction

Construction

Bridge

MMC

Misc
